Trailcraft Direct Mount Cranks

(9 customer reviews)

$199.99

SKU: SM-CRANK-17 Category: Tag:

Description

Description

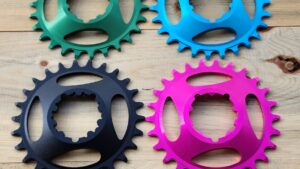

PLEASE NOTE 28 tooth BLACK chainrings are out of stock - returning September 20th. Pink, blue and green in stock in 28 tooth size. Please select a color (no extra charge right now that we are out of black)

Cranks come complete with chainring, spacers, spindle bolt and bottom bracket to fit any threaded 68/73mm bottom bracket shell. 49mm chainline, 168mm Q-Factor.

Trailcraft Cycles high performance aluminum cranks feature a direct mount interface with 26, 28, 30, and 32 tooth narrow-wide/drop stop style chainring options. Our new direct mount crank system typically drops 150 grams or more off a traditional stock square tapered setup and allows way more gearing options never before found on 127mm, 140mm, 152mm, and 165mm crank lengths. We love this setup so much it is now a stock option on all of our complete bike configuration builds - and now also to riders who want to make a current bike you own lighter!

This is an incredibly light and stiff high-performance crankset. With 26, 28, 30, and 32 tooth options you can now dial in the perfect gearing for super steep riding terrain. The crank arms are forged and use a BSA (Shimano standard) 24mm spline interface spindle CNC machined from 7050 aluminum alloy. Removable 3-bolt direct mount ring design offers the ability to quickly change different chainrings depending on your next ride location or race.

This is a complete system of crank arms, bottom bracket, and your choice of chainring size. These cranks will work on all standard 68/73mm threaded bottom brackets shells. Additional chainrings may be purchased separately here.

FUTURE PROOF! If you want to go bigger than our 32 tooth, our direct mount cranks are compatible with other brands chainrings using the common spline attachment system and 6mm offset spacing (49mm chainline).

Crank Specifications: Built Specifically For : XC/Trail/Enduro Lengths Available: 127mm, 140mm, 152mm 24mm 7050 ALLOY Spindle 49mm Chainline, 168mm Q-Factor

Crank Arm Weight (BB Weight in specs below):

140mm with 26t - 546g

140mm with 28t - 549g

140mm with 30t - 558g

152mm with 26t - 570g

152mm with 28t - 573g

152mm with 30t - 582g

165mm with 26t - 596g

165mm with 28t - 608g

165mm with 30t - 611g

External Bottom Bracket Specifications:  (Note bottom bracket is included with this purchase)

Left/Right cups, 3 2.5mm spacers, guide cover w/ inner O-rings, Maintenance-free sealed bearings, Compatible with 68mm and 73mm bottom bracket shells, Durable black anodized finish, Easy installation with Park Tool BBT-19 or BBT-9 (not included) Tightening torque 35-50nm

Just 113g (including 3 2.5mm spacers)

Features

Features

Trailcraft Cycles high performance aluminum cranks feature a direct mount interface with 26, 28 and 30 tooth narrow-wide/drop stop style chainring options. Our new direct mount crank system typically drops 150 grams or more off a traditional stock square tapered setup and allows way more gearing options never before found on 140mm, 152mm, 165mm crank lengths. We love this setup so much it is now a stock option on all of our PRO level bike configuration builds - and now also to riders who want to make a current bike you own lighter! Cranks come complete with bottom bracket, spacers and spindle bolt to fit a 68/73mm bottom bracket shell. 49mm chainline, 168mm Q-Factor.

Specs

Specs

Cranks come complete with bottom bracket, spacers and fixing bolt to fit a 68/73mm bottom bracket shell. 49mm chainline.

Reviews (9)

9 reviews for Trailcraft Direct Mount Cranks

  1. Pam (verified owner)

    Trailcraft rocks! l’ll be sure to share my love with other petite cyclists and folks with kids who want a real riding experience. Direct Mount cranks are superior fit and finish, easy to install and plenty stiff for this gravel riding adult. My 152mm crank arrived nicely packaged and, thanks to easy to follow installation instructions, I was out riding in less than 30 minutes. I’ve been scouring the US for a crankset offering conversion ease, one that’s strong, light without the big name boutique price tag. Trailcraft answered my call -what a gem!

  2. Matt Jones (verified owner)

    Our youngest son is at a tough age for mountain biking – outgrowing his 24″, still too small for 27.5″, and most 26″ bikes on market are tanks. Enter Trailcraft.

    We decided to build a 26″ hardtail for him, and the Trailcraft direct mount crankset fit the bill perfectly. Light weight, quality build, and with the crank arm length and tooth count combination to enable us to use a 1×10 drivetrain. We chose the 28t chainring so he could climb without his spirits breaking. Kids have the most fun going downhill, but now he even enjoys getting to the top!!

    We also added the junior saddle, and it fits him great and is also light.

    Thank you Ginger and Brett for the quality products, great service, and for understanding what the kids need.

  3. clintmongan (verified owner)

    The quality of build, low weight, variety of sizes, and accessibility of these Trailcraft direct mount cranks made them an easy choice. The options we now have in how I am able to set up my kids bikes has changed both how and where we are able to go mountain biking as a family. Definitely an excellent upgrade over the traditional (very heavy) square tapered bottom bracket and heavy cranks found on most every other brand of kid’s bikes.

  4. William Presnell (verified owner)

    I’ve now purchased 4 sets of cranks from Trailcraft and am very pleased with the quality and weight, not to mention their service. It makes absolutely no sense that they are putting larger cranks on kids bikes, or XS adult bikes for that matter. I looked around and found a few other options, but by far these are the best cranks for kids and shorter adults. My wife is only 5′ tall, and the 170mm cranks that came on her XS Juliana were way too long and causing her knee pain. The 140mm cranks immediately resolved that and she loves them. My kids are on them as well and their speed/endurance immediately improved. As a bonus – way fewer pedal strikes. I’m a huge fan.

  5. lloyd (verified owner)

    Love these cranks. I have the 152mm crankset on two different kids bikes now. Shimano BB compatible, light weight. Couldn’t be better.

  6. Jimmy Bragg

    Very good cranks and surprisingly light also but the best part is how I was treated by this company will always use them going forward can’t say enough good things about them purchased a set of 152mm cranks for a hard tail mullet set up works better than expected

  7. Jimmy Bragg

    Very good cranks and surprisingly light also but the best part is how I was treated by this company will always use them going forward can’t say enough good things about them

  8. Traven Thai (verified owner)

    I purchased the 127mm cranks with 26t chainring for my new bike build. I’m 5ft 6in with pretty average leg length. I read an study somewhere showing that power output wasn’t really dependent on crank length and thought I’d test this myself. I scaled the chainring to my rear cassette accordingly. This has vastly improved my riding experience. No more pedal strikes and I’m much more comfortable. No loss of power since my legs naturally spin faster but in a smaller circle. I will be using these cranks on future builds.

  9. Sébastien Delisle

    Crankset 26 tooth and bottom bracket very well made, excellent quality and light as well.
