Pineridge 24 Carbon

On Sale!

Price range: $2,999.00 through $3,999.00

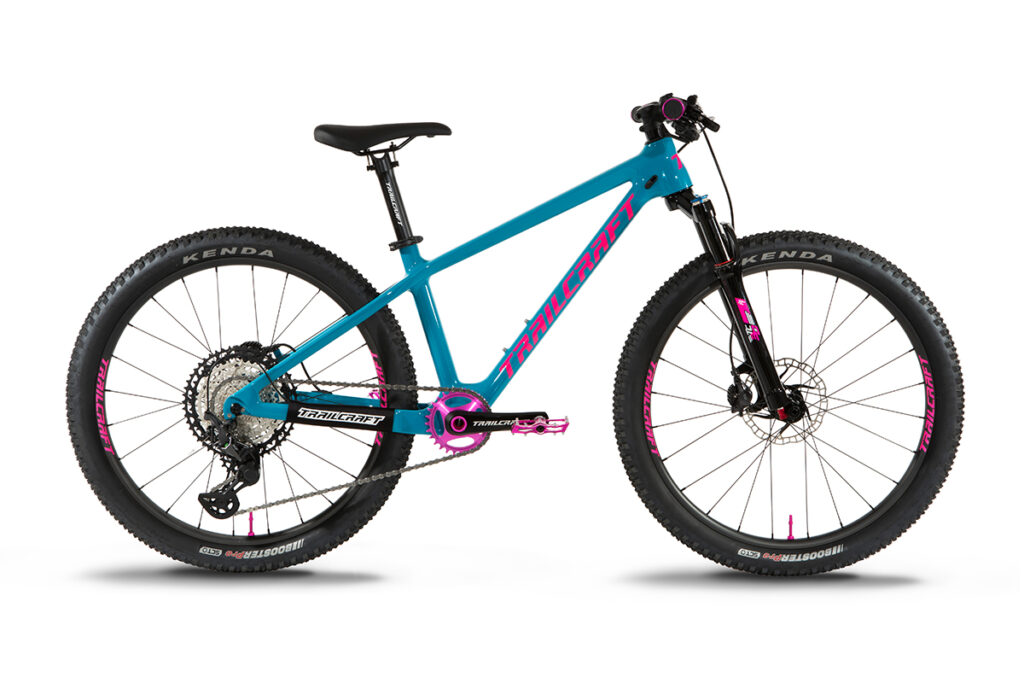

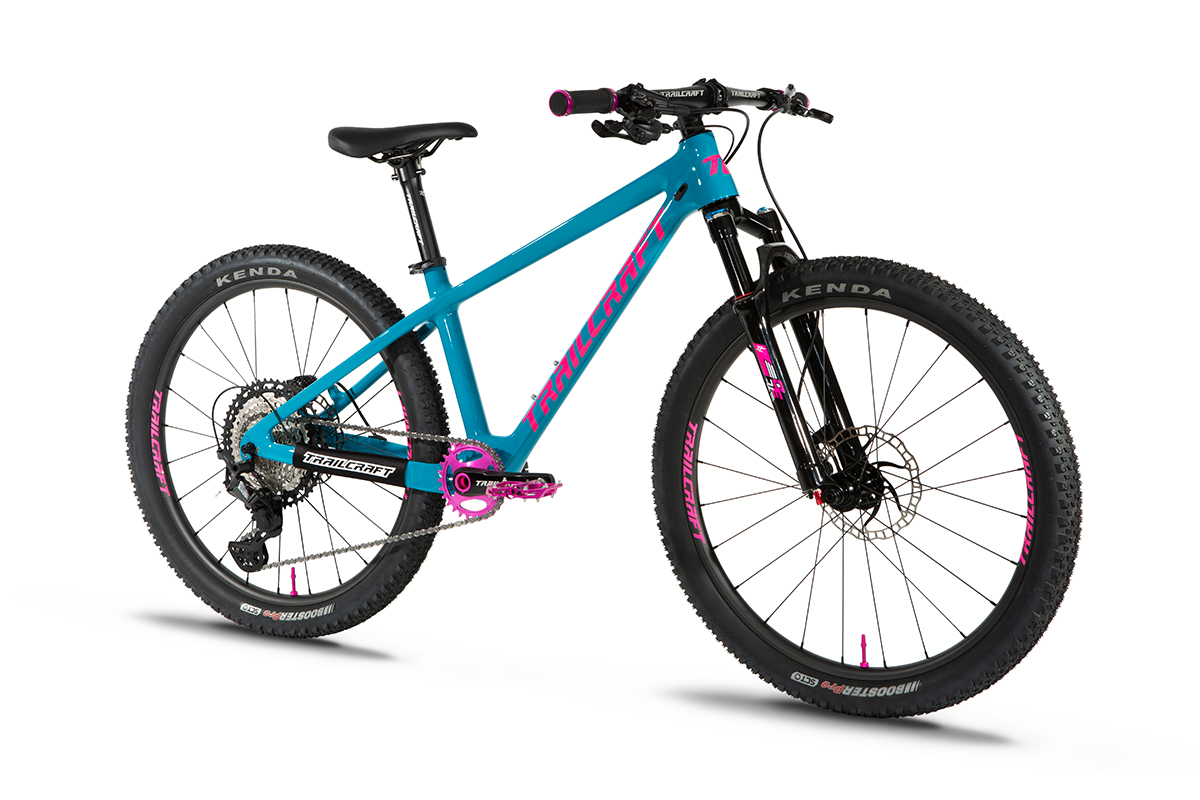

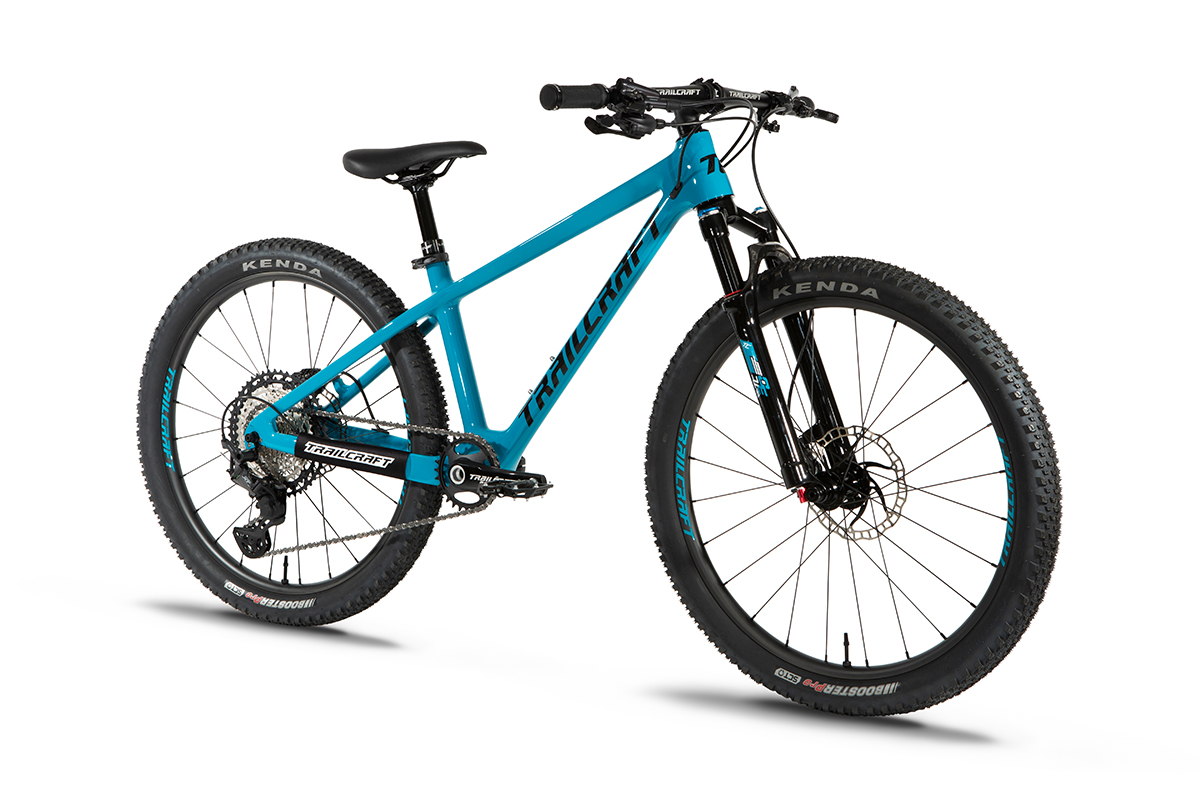

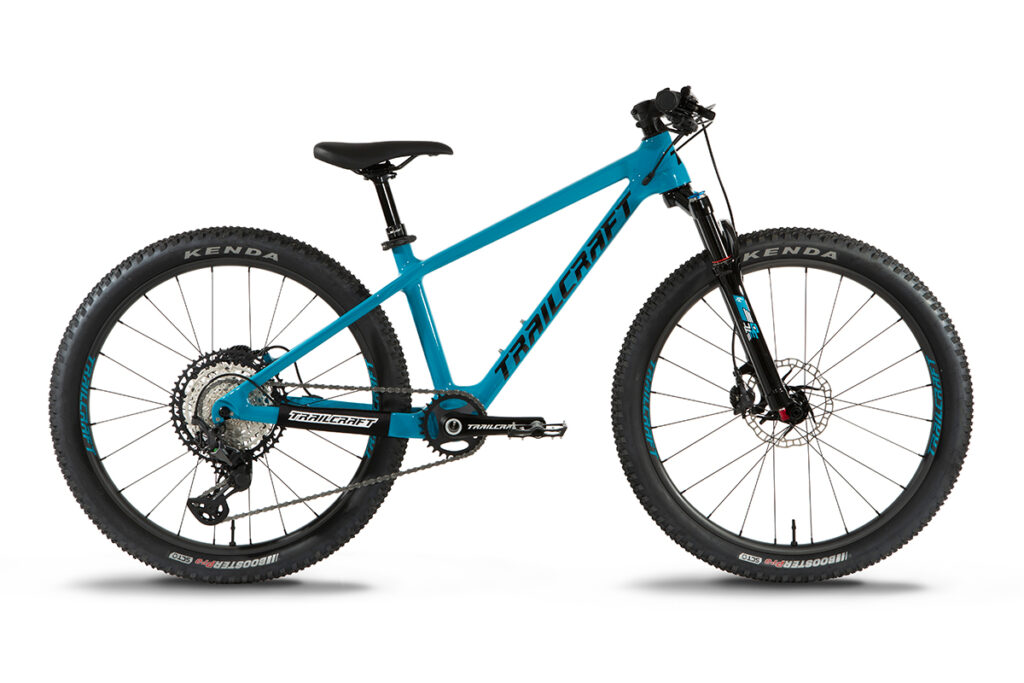

The Pineridge 24 Carbon is a lightweight carbon 24 inch mountain bike for kids who are looking for the lightest possible setup. With a sub-1000 gram carbon frame, optional carbon wheelset, and top-tier builds under 19 pounds, it delivers premium performance in a smaller package. Designed for riders between 4’1″ and 4’5″ tall, this is the ultimate hardtail for young shredders who want to climb faster, ride longer, and develop next-level skills on the lightest bike in the 24″ category.

Additional Options

Tubeless Tire Setup – FREE this month!

Have us set up your bike tubeless with color matched tubeless valves and Orange Seal tire sealant if you click the checkbox below! $40.00 value!

KS LEV SI 75mm Dropper Post – lightest actuation in the dropper post category

Dropper Post Install – Have a KS LEV Si 75mm dropper post pre-installed on your complete bike

SUPERBLUE upgrade option – BLUE anodized SUPERLIGHT CNC’d pedals, crank spindle, stem, seatpost collar, chainring and grip ends

Normally $150.00!!!

SUPERPINK upgrade option – PINK anodized SUPERLIGHT CNC’d pedals, crank spindle, stem, seatpost collar, chainring and grip ends

Color matched PINK CNC’d pedals, crank spindle, stem, seatpost collar, chainring and grip ends

SUPERGREEN upgrade option – GREEN anodized SUPERLIGHT CNC’d pedals, crank spindle, stem, seatpost collar, chainring and grip ends

Color matched GREEN anodized SUPERLIGHT CNC’d pedals, crank spindle, stem, seatpost collar, chainring and grip ends

BLACK CNC’d Premium pedal upgrade – just 224 grams!

Normally a $120.00 upgrade!!!

Trailcraft Carbon wheelset upgrade – Make this bike the lightest possible – Elite (XT) and AXS level builds only!

You must select the ELITE or GX AXS Level Build for this upgrade- 12 speed Shimano driver body

Trailcraft Carbon Riser Bar Upgrade

A little bit of rise, but all of the carbon fiber!

- +
SKU: PR24C Category: Tag:

Description

The Pineridge 24 Carbon presents an ideal lightweight hardtail solution for riders measuring between 4'1" and 4'7". Featuring a carbon frame weighing under 1000g, it stands as the pinnacle of excellence in the realm of 24" hardtail mountain bikes. Meticulously crafted to mirror the performance of adult-level bikes, it offers unrivaled quality in a scaled-down format suitable for young riders. Configurations begin at just under 19 pounds, with the top-of-the-line X01 AXS electronic shifting build option paired with carbon wheels, setting a new benchmark in premium biking experiences.

Our Trailcraft Carbon 24 wheelset upgrade option (ELITE and GX AXS builds only) features a 27mm external and 22mm internal rim width:

  • The rear wheel weighs 662 grams.
  • The front wheel weighs 478 grams.
  • Excluding skewers and tape, the total weight amounts to 1140 grams.
The 24-inch wheel size serves as the foundational stage where children develop crucial riding skills that will resonate throughout their mountain biking journey. It's during this phase that they spend the most time on a bike, typically spanning three full years for riders measuring 4'1" in height.
We prioritize excellence by equipping the Pineridge 24 Carbon with the finest components available. With ongoing advancements in component technology, we continually refine our bikes to shed even more weight. For those seeking the lightest possible setup, we offer the option to upgrade to a carbon wheelset, further enhancing the bike's performance and agility on the trails.

Frequently Asked Questions

Will my child fit the Pineridge 24 Carbon?

The Pineridge 24 Carbon is designed for kids around 4’2”- 4’9” (about 127–145 cm) with inseam around 24 to 28 inches (61 cm).

What’s the difference between the alloy and carbon versions?

Both frames are lightweight and durable, but the carbon model shaves extra grams and adds stiffness for even better climbing and descending.

How heavy is the Pineridge 24 Carbon?

The Pineridge 24 Carbon offers four different models, weighing between 18.9 and 20 lbs tubeless. Different part customizations may change the estimated weight. Check out our specs to learn more.

Features

  • Full-length internal cable routing for both the rear derailleur and rear brake.
  • Includes a stealth dropper cable routing for a sleek and professional appearance.
  • Elite – 1×12 component group featuring full Shimano XT componenets and an XT GS mid-cage rear derailleur.
  • XT 10-51 cassette.
  • T 12 speed rear shifter, and XT front/rear brakes.
  • A true and complete XT M8100 level package to keep weight low and performance high.
  • Pedals are included.
  • Toray 8000 series carbon fiber.

Specs

MODELPro BuildElite BuildGX AXS Build X01 AXS Build
FRAMEPineridge 24 CarbonPineridge 24 CarbonPineridge 24 CarbonPineridge 24 Carbon
FORKTrailcraft TC30 Tapered 80mm Carbon/Alloy 1485 gramsTrailcraft TC30 Tapered 80mm Carbon/Alloy 1485 gramsTrailcraft TC30 Tapered 80mm Carbon/Alloy 1485 gramsTrailcraft TC30 Tapered 80mm Carbon/Alloy 1485 grams
HEADSETTrailcraft Precision Sealed CartridgeTrailcraft Precision Sealed CartridgeTrailcraft Precision Sealed CartridgeTrailcraft Precision Sealed Cartridge
REAR DERAILLEURShimano Deore 12 speedShimano XT 12 Speed Sram GX AXS 12 Speed Wireless Sram X01 AXS 12 Speed Wireless
SHIFTERShimano Deore 12 speedShimano XT 12 SpeedSram GX AXS Wireless Sram X01 AXS Wireless
BRAKESShimano Deore 6100 HydraulicShimano XT 8100
Hydraulic
Shimano Deore 6100 HydraulicShimano XT 8100
Hydraulic
CRANKSTrailcraft Direct Mount 140mm , Alloy Spindle, 26,28,30,32t OptionTrailcraft Direct Mount 140mm, Alloy Spindle, 26,28,30,32t OptionTrailcraft Direct Mount 140mm, Alloy Spindle, 26,28,30,32t OptionTrailcraft Direct Mount 140mm, Alloy Spindle, 26,28,30,32t Option
BARTrailcraft Pro AlloyTrailcraft Pro AlloyTrailcraft Pro AlloyTrailcraft Pro Alloy
GRIPSTrailcraft Lock-OnTrailcraft Lock-OnTrailcraft Lock-OnTrailcraft Lock-On
STEMTrailcraft Superlight Length: 40mmTrailcraft Superlight, Length: 40mmTrailcraft Superlight, Length: 40mmTrailcraft Superlight, Length: 40mm
POSTTrailcraft 30.9Trailcraft 30.9 SuperlightTrailcraft 30.9 SuperlightTrailcraft 30.9 Superlight
SADDLETrailcraftTrailcraftTrailcraftTrailcraft
PEDALSVP Composite with metal pins VP Composite with metal pins VP Composite with metal pins VP Composite with metal pins
CASSETTEShimano Deore 12 speedXT M8100 10-51 12 SpeedSram GX 10-52 12 speed Sram XX1 10-52 12 speed rainbow
WHEELSETStans Crest MK$ High EngagementStans Crest MK4 High EngagementStans Crest MK4 rims laced to superlight hubs. SRAM XD driver body Stans Crest MK4 rims laced to superlight hubs. SRAM XD
TIRESKenda Booster 24x2.2"Kenda Booster 24x2.2"Kenda Booster 24x2.2"Kenda Booster 24x2.2"
PRICE$2999$3999$3499$4599
Estimated Weight20 pounds (estimated)19.25 pounds (tubeless)19.5 pounds (tubeless)18.9 pounds (tubeless)
Model

X01 AXS, GX AXS, Elite Build, Pro Build

2 reviews for Pineridge 24 Carbon

  1. Rated 5 out of 5

    Kevin Purvis (verified owner)

    We loved our Blue Sky 20 and so doubled down when it was time to get a 24″ bike. Went with the Pineridge 24 Carbon. Bike is super responsive and amazingly light for her. The front fork works exceptionally for such light little people. She’s instantly faster on it as a 48″ almost 7 yr old (the size is a little stretch for her, but she’s happier on it than the 20″ at this point). The 1×12 provides huge range. We should probably have gotten the next chain ring size up. I’d recommend to any serious little rider.

  2. Rated 5 out of 5

    jeff wuerker

    Best money spent! My very small 8y/o daughter, 47″ and 40lbs loves her new bike. We had to cut the seat post to lower a bit, but she is going great and feels much more secure on the technical trails we have around Grand Junction.

Add a review

Geometry

Geometry - Pineridge 24(millimeters)
Seat Tube Length-Center to Top321
Top Tube Length (Horizontal)495
Top Tube Length (Actual)488
Chainstay Length385
Bottom Bracket Height270
Seat Tube Angle (Actual)73 Degrees
Head Tube Angle68.4 Degrees
Wheel Base959
Standover Height600mm (23.6 inches)

Size Chart

Approximate Age7-11
Minimum Inseam24 inches
Height Range4'2"- 4'6"
